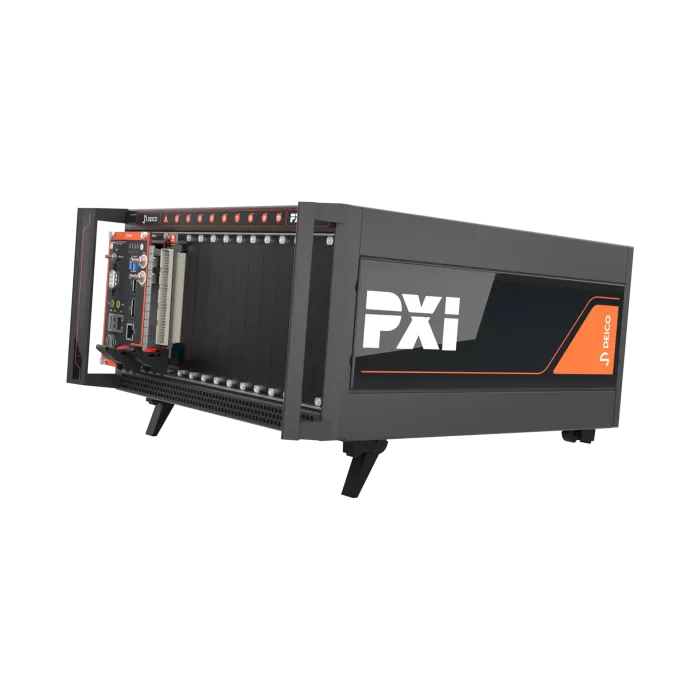

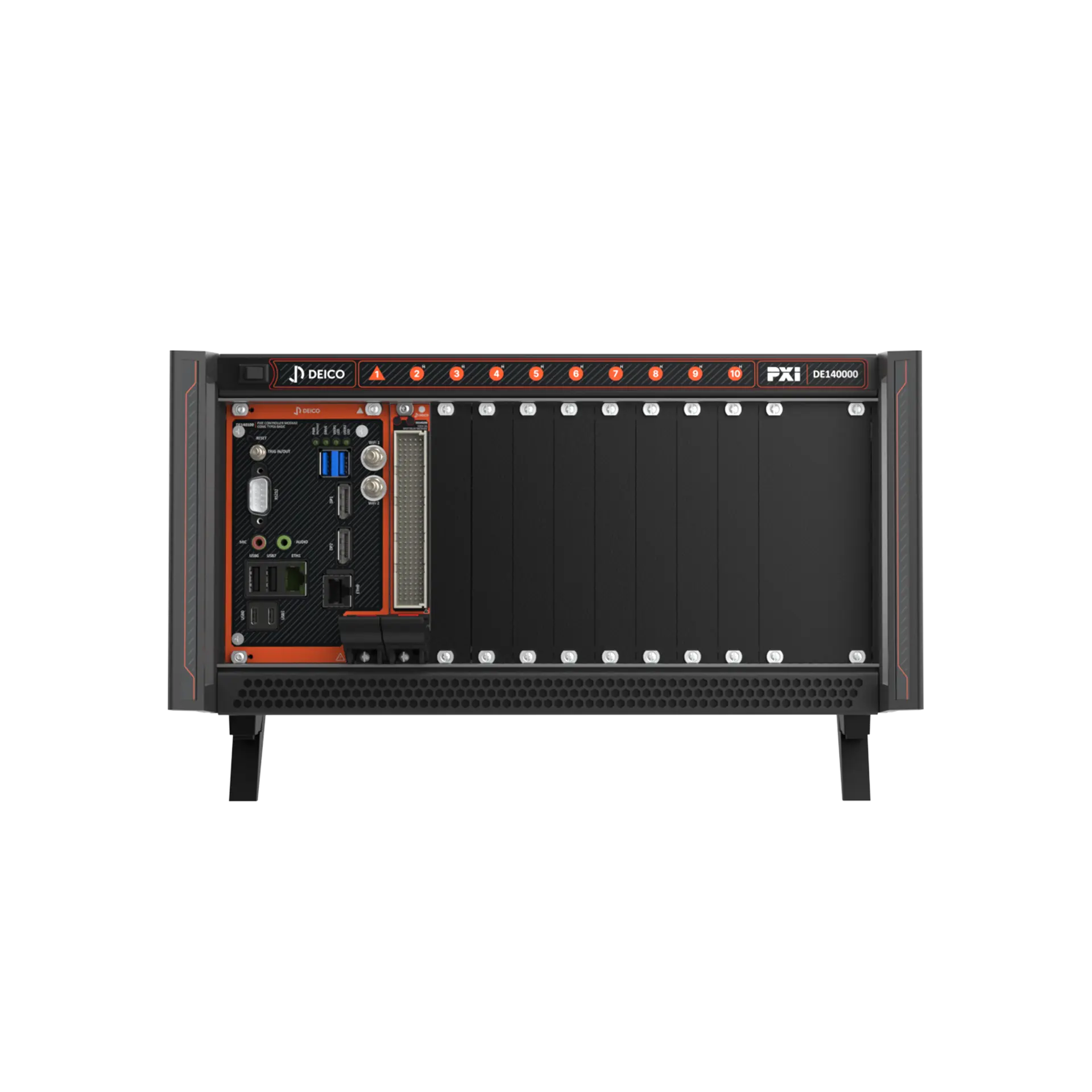

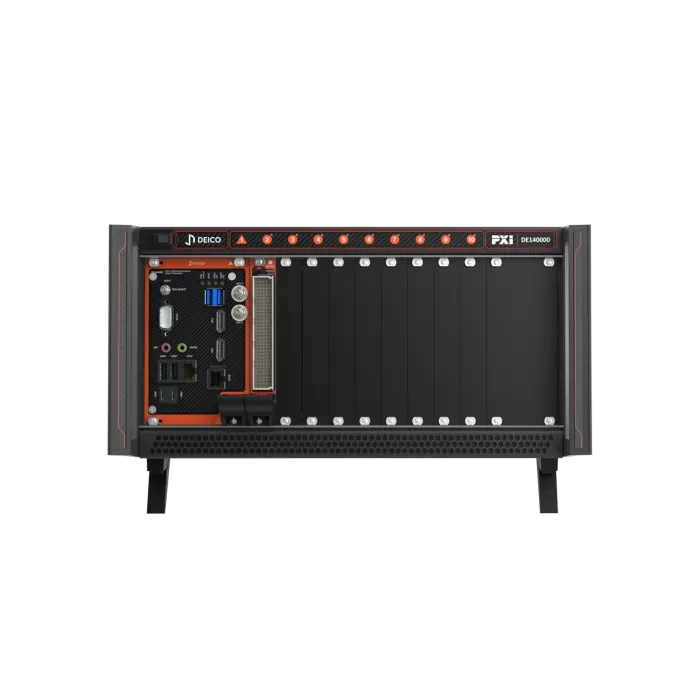

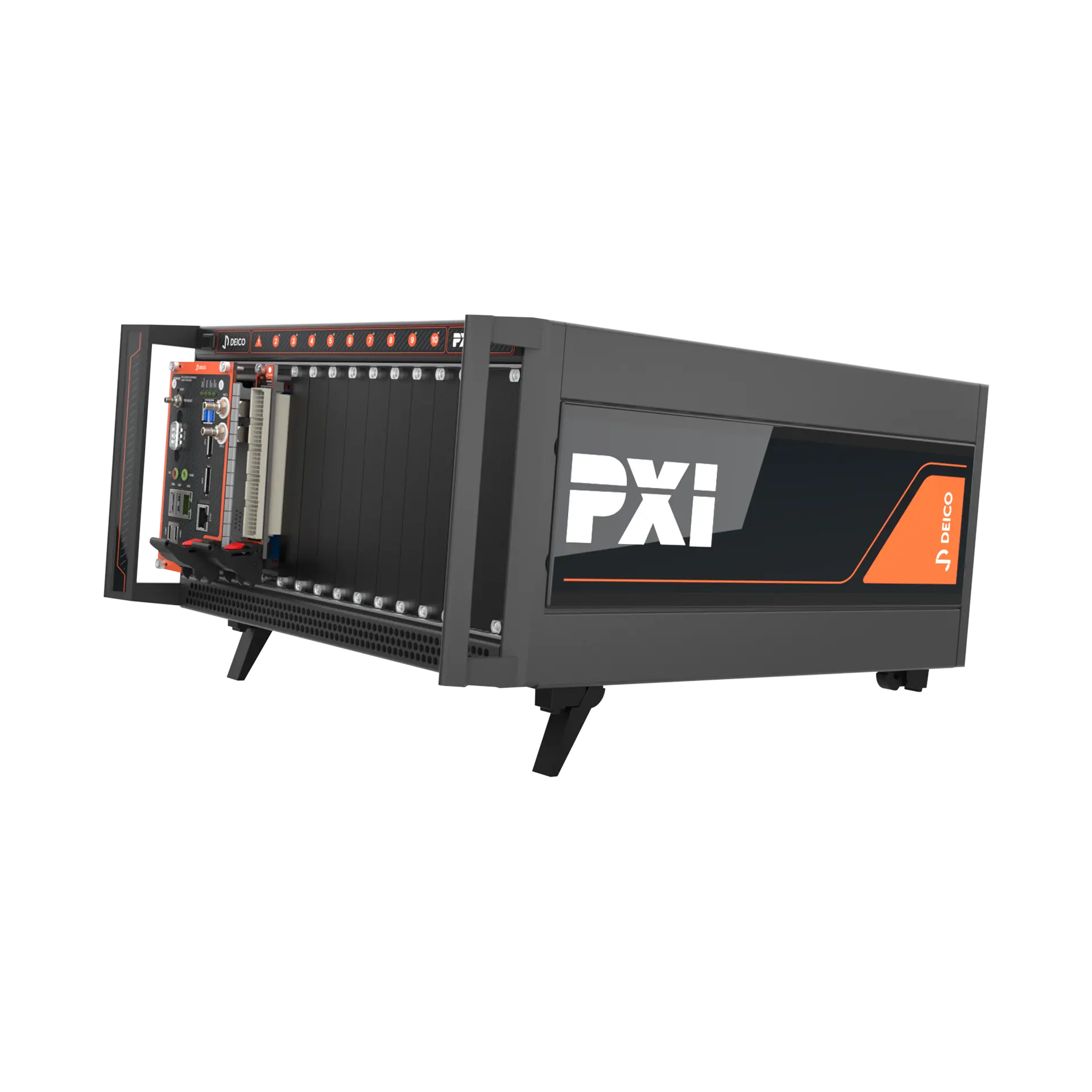

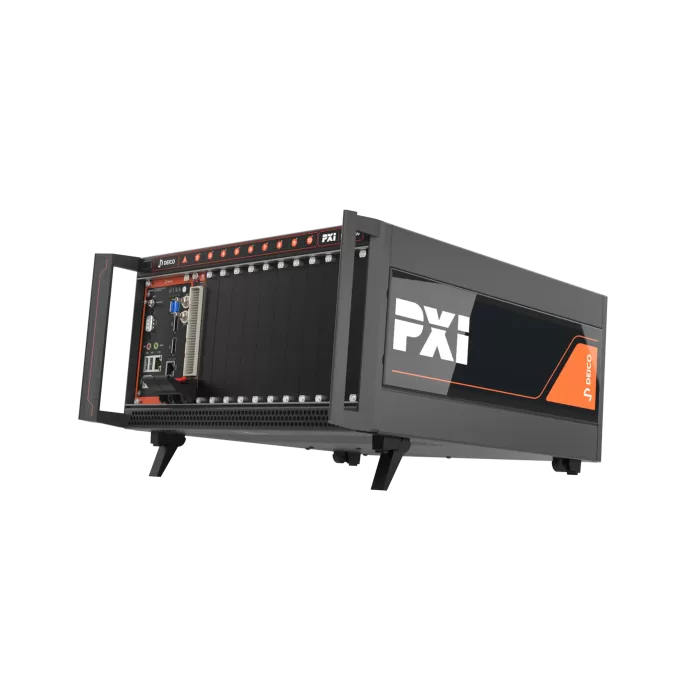

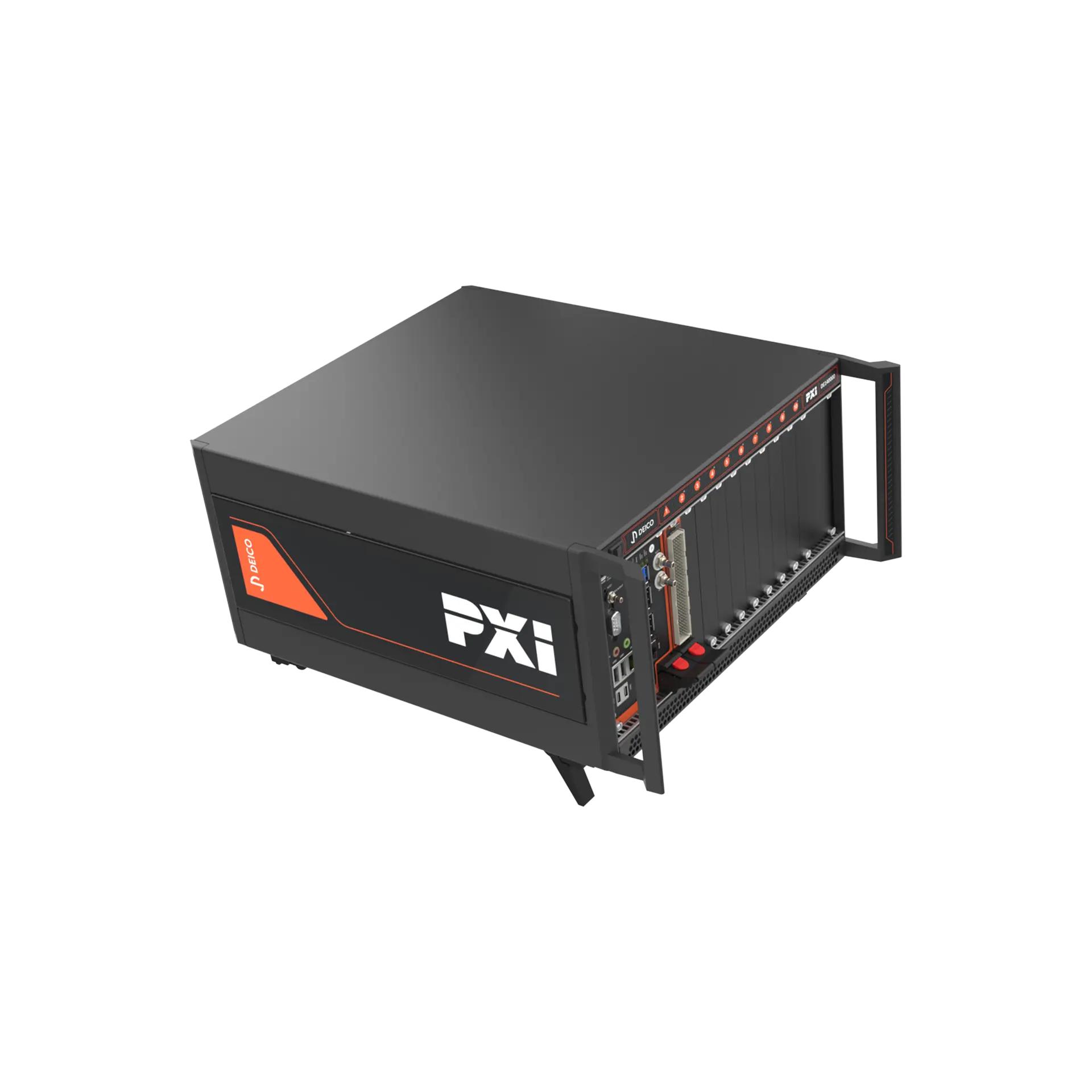

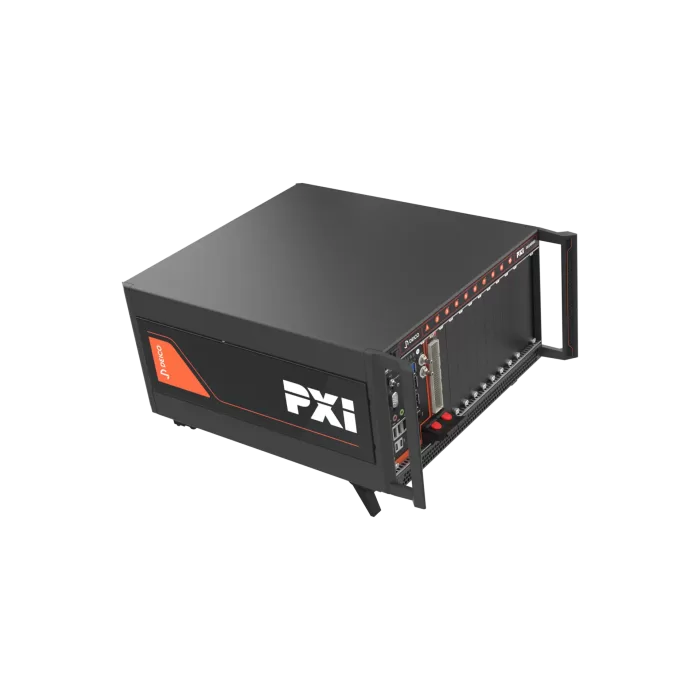

PXIe Chassis 10 Slot 4 Link Gen 3 is a 10 slot PXIe chassis. This device creates a test environment by connecting system modules and peripheral modules with PCIe protocol.

Key Features

• 1 system slot, 9 hybrid peripheral slots
• 4-link configuration (4 x 4)
• PCI Express Gen 3 x 4
• 16 GB/s system bandwidth
• 32-bit, 33/66 MHz PCI legacy support
• Inhibit mode and fan mode selection
• 4 PFI interfaces
• External reference clock input / output
• SMBus support
• Total 1000 W power capability
• 82 W slot cooling capability

DE140000 is compatible with IEC 60068-2-1 / IEC 60068-2-2 / IEC 60068-2-78 / IEC 60068-2-27 / IEC 60068-2-64 / EN 61326 (IEC 61326) / EN 55011 (CISPR 11) / AS / NZS CISPR 11 / FCC 47 CFR Part 15B / ICES- 001 standarts.

Areas of application

• LAB usage
• Modular test systems
• Automated test equipment
