Overview

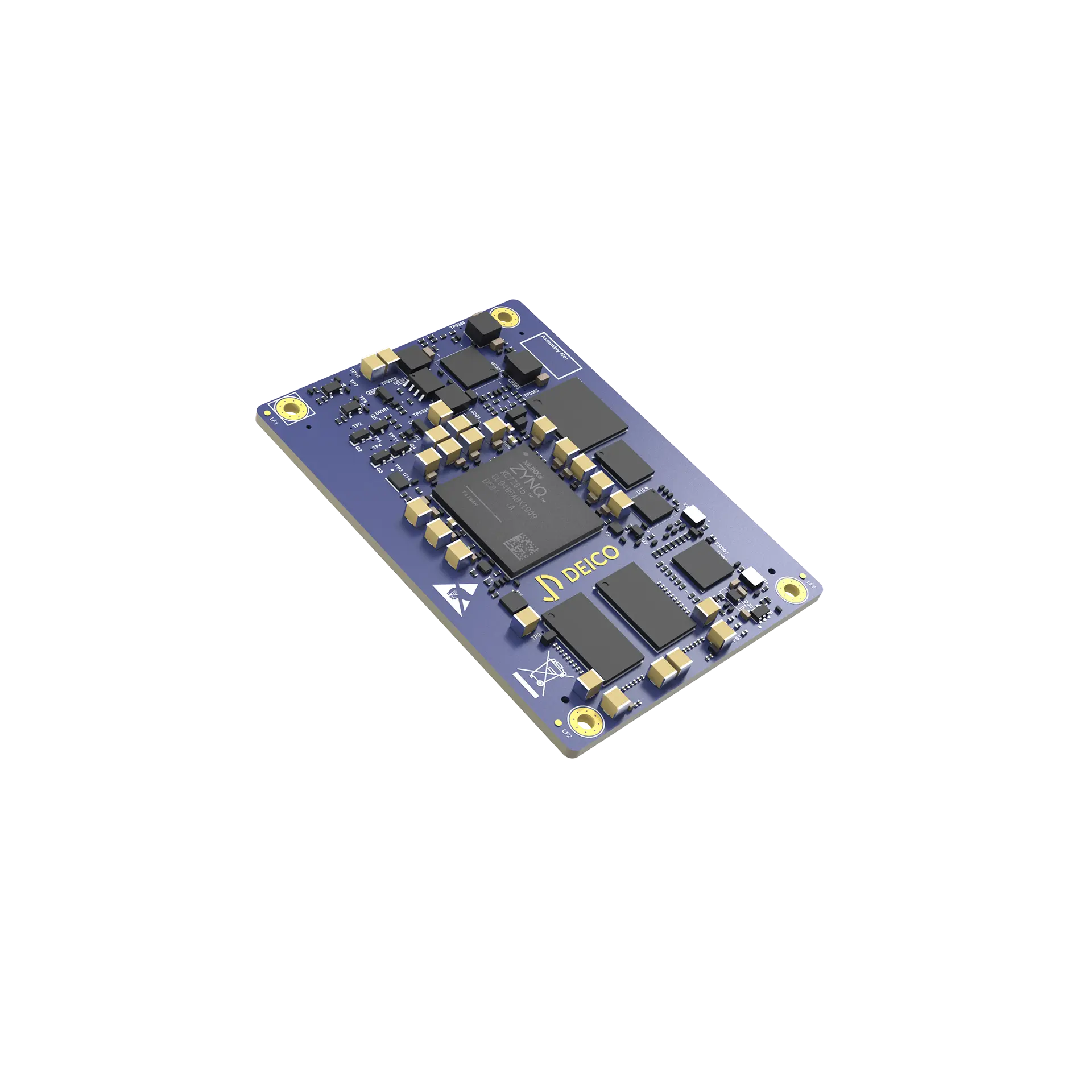

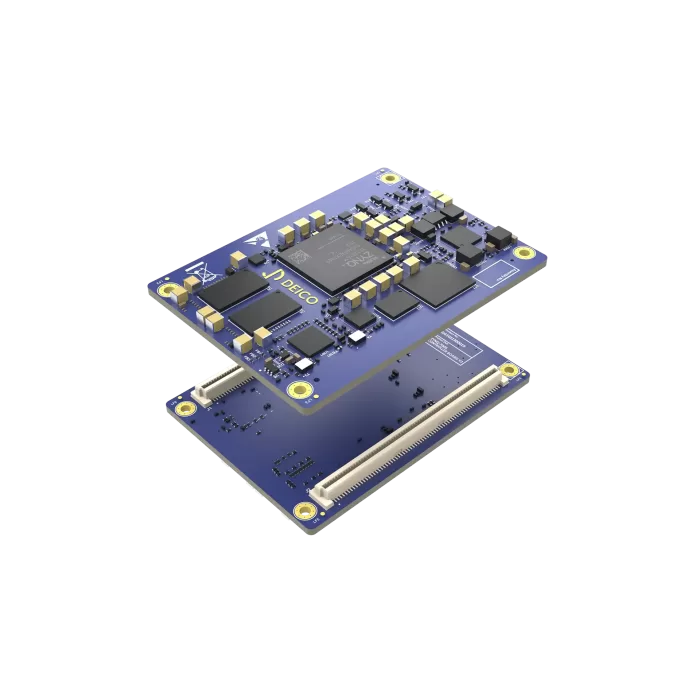

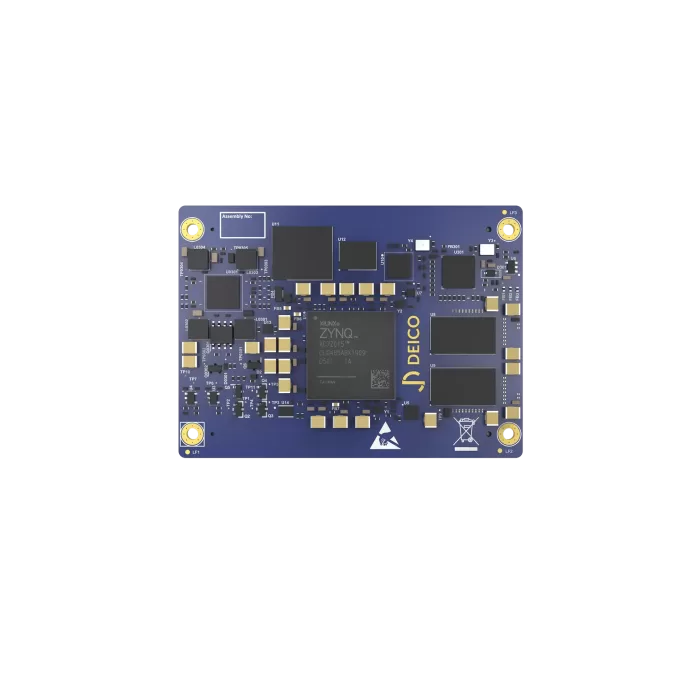

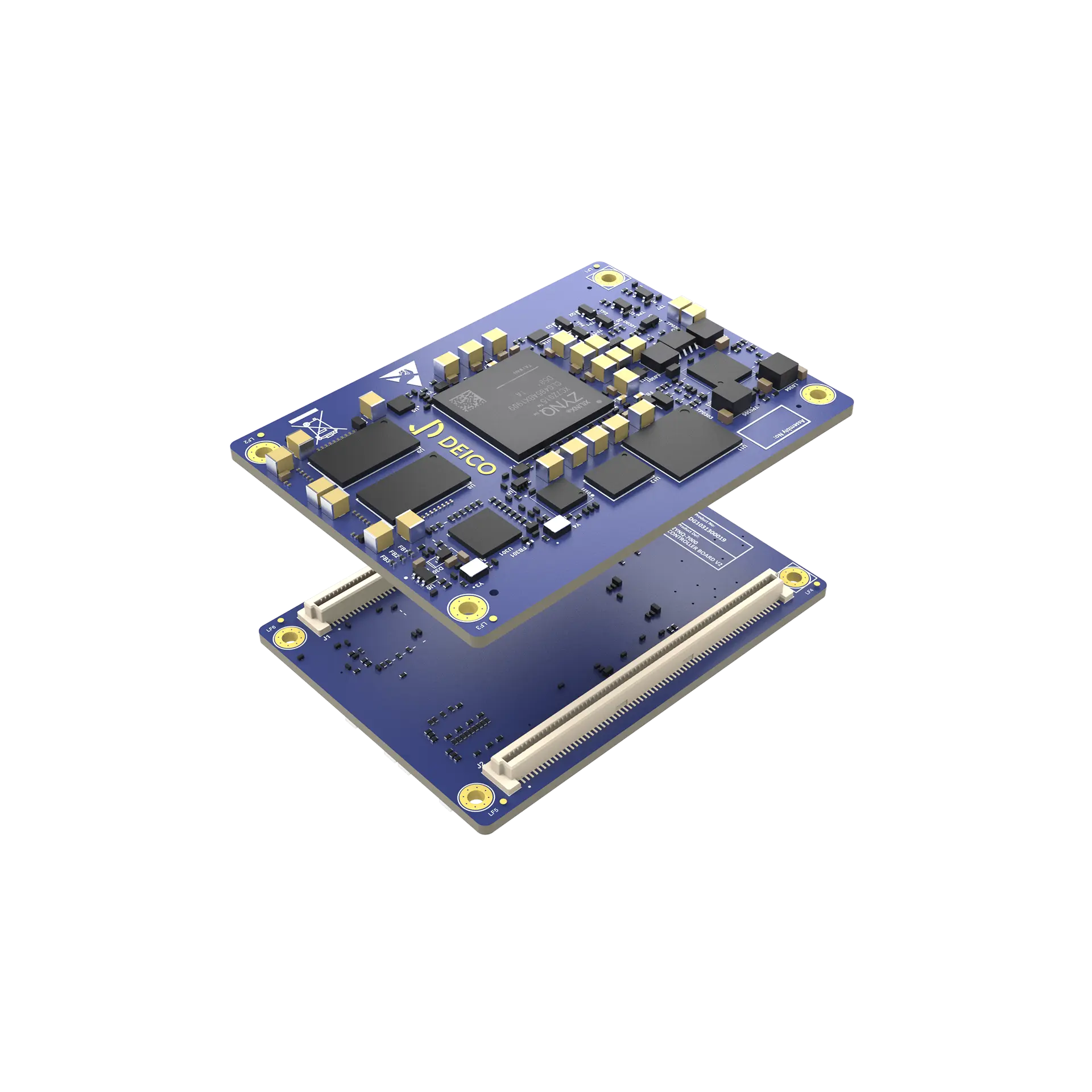

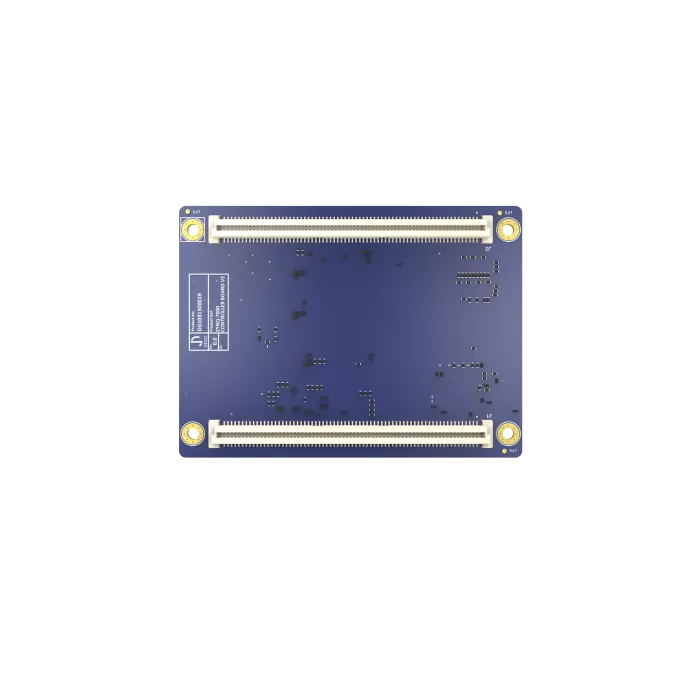

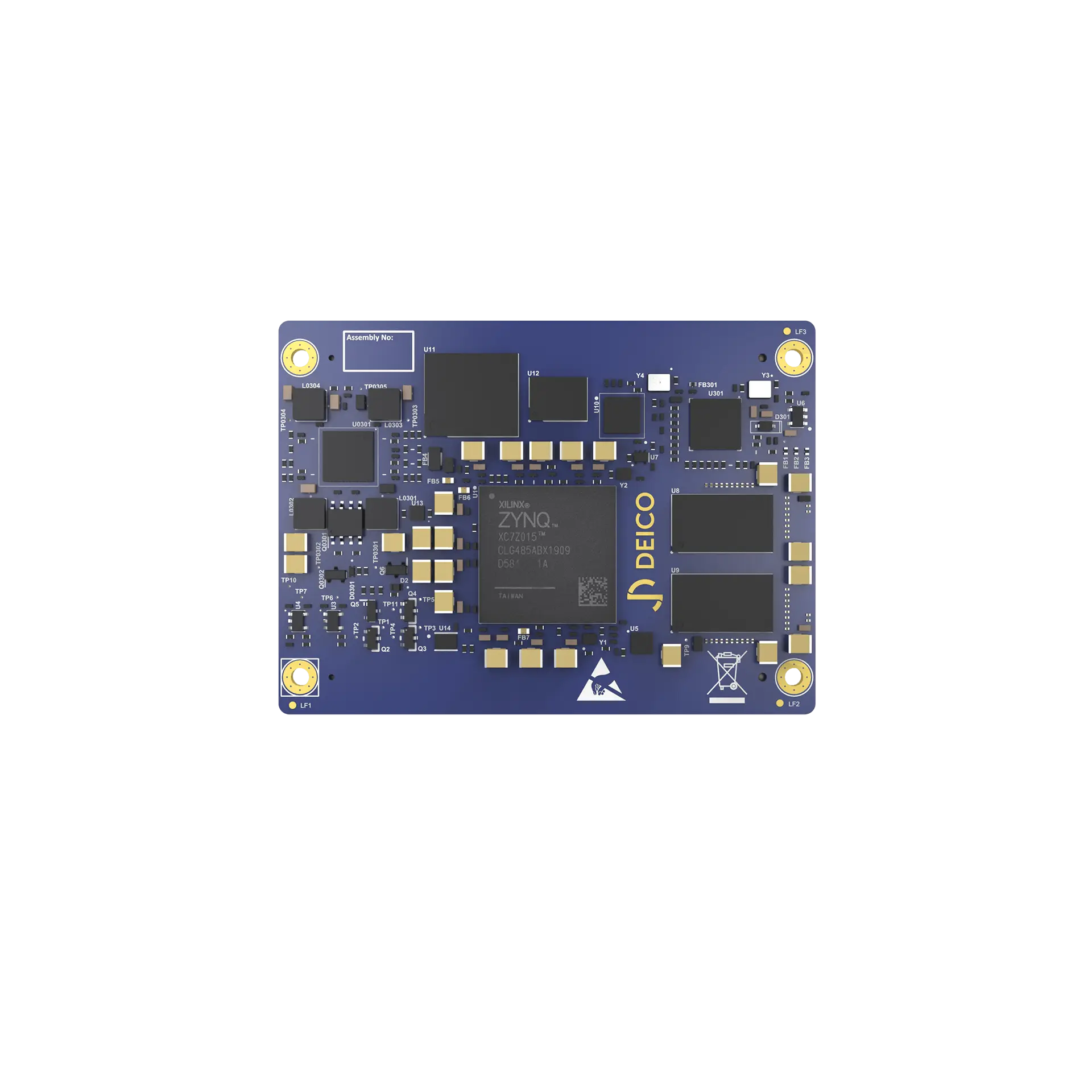

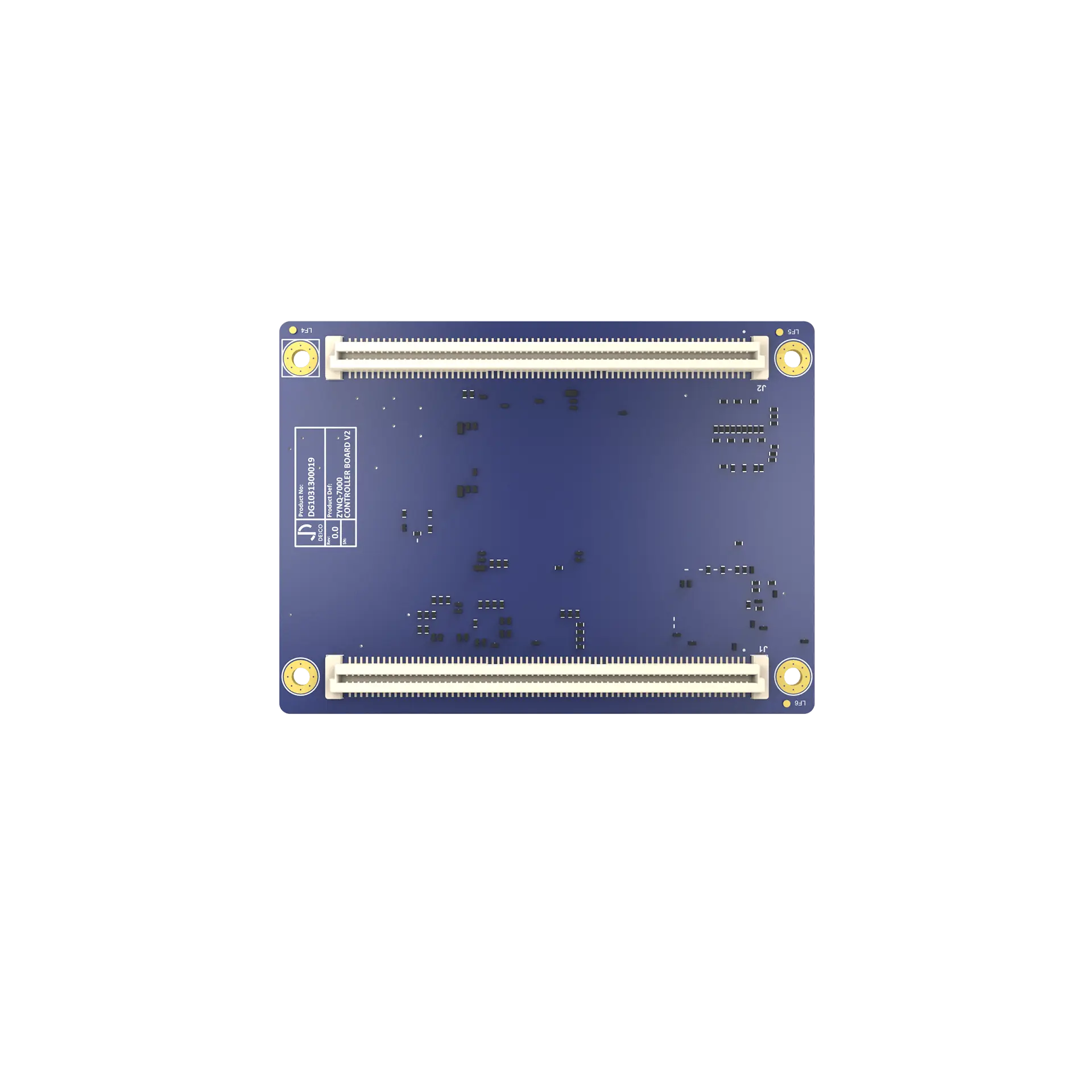

DE13210 Zynq-7015 System on Module (SoM) is an embedded core board which uses Xilinx Zynq-7000 series XC7Z015 SoC FPGA with dual core ARM® Cortex™-A9 based processing system. The SoM is very compact and includes fundamental components such as DDR Memory, QSPI Flash, eMMC, USB PHY and Ethernet PHY. The SoM offers rapid designs and design flexibility.
Key Features
- Zynq-7000 Series SoC FPGA (XC7Z015)
- Small form factor
- 1 GB DDR3 SDRAM
- 8 GB eMMC
- 32 MB QSPI flash
- 2 KB EEPROM
- 10/100/1000 Mb/s Ethernet PHY
- USB 2.0 PHY
- Temperature sensor
- 137 PL I/O (66 differential pairs)
- 21 PS I/O
- 4-lane PL GTP transceivers
- Adjustable PL I/O voltage
