Overview

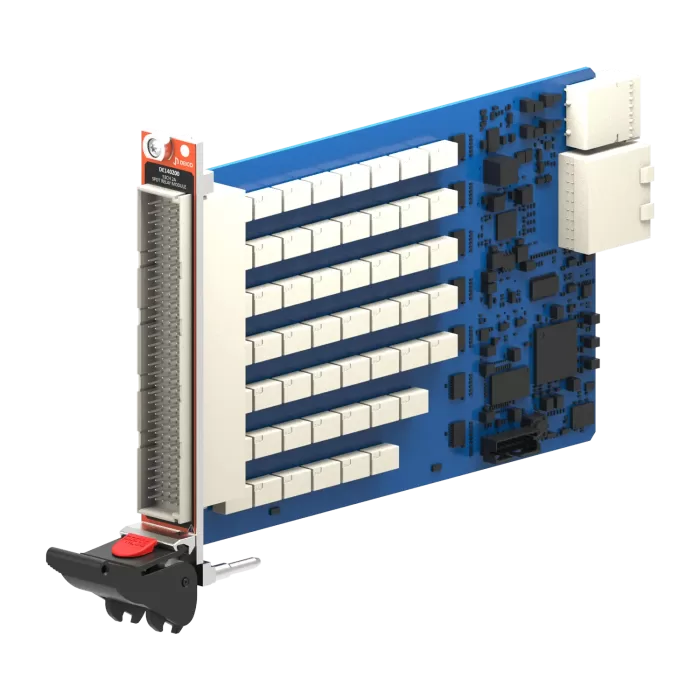

DE140200 PXIe Relay Module 53 CH 2 A SPDT is a general-purpose relay module designed for high-density switching in medium power applications. It features 53 independent SPDT electromechanical relays, providing flexible switching capabilities. Each relay supports switching voltages of up to 220 V DC or 250 V AC and can handle power ratings of up to 60 W (DC) / 62.5 VA (AC). The module has a maximum current capacity of 2 A per channel. A PXIe chassis is required for operation.
Key Features
- 53-channel SPDT electromechanical relay
- Up to 220 V DC / 250 V AC
- Up to 60 W / 62.5 VA
- 2 A rated current
- Hot or cold switching
- Maximum 200 mΩ DC path resistance
- Maximum 5 ms relay operate time
