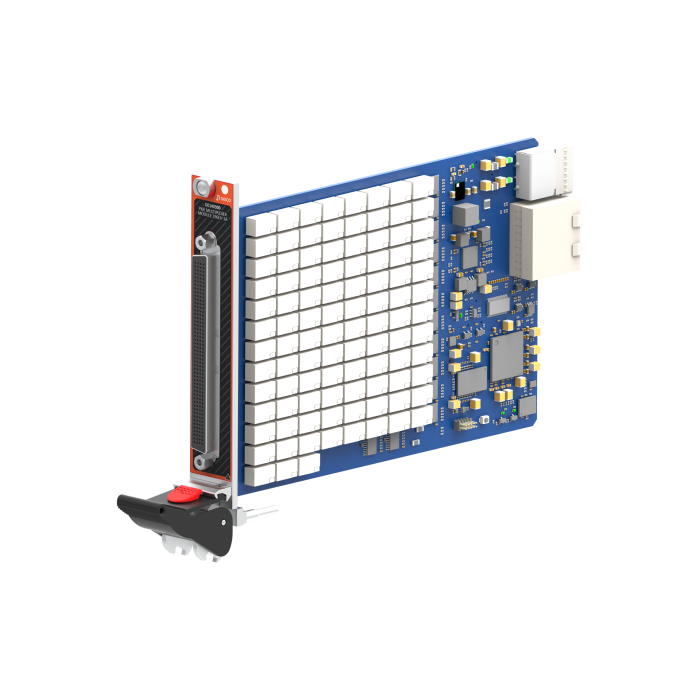

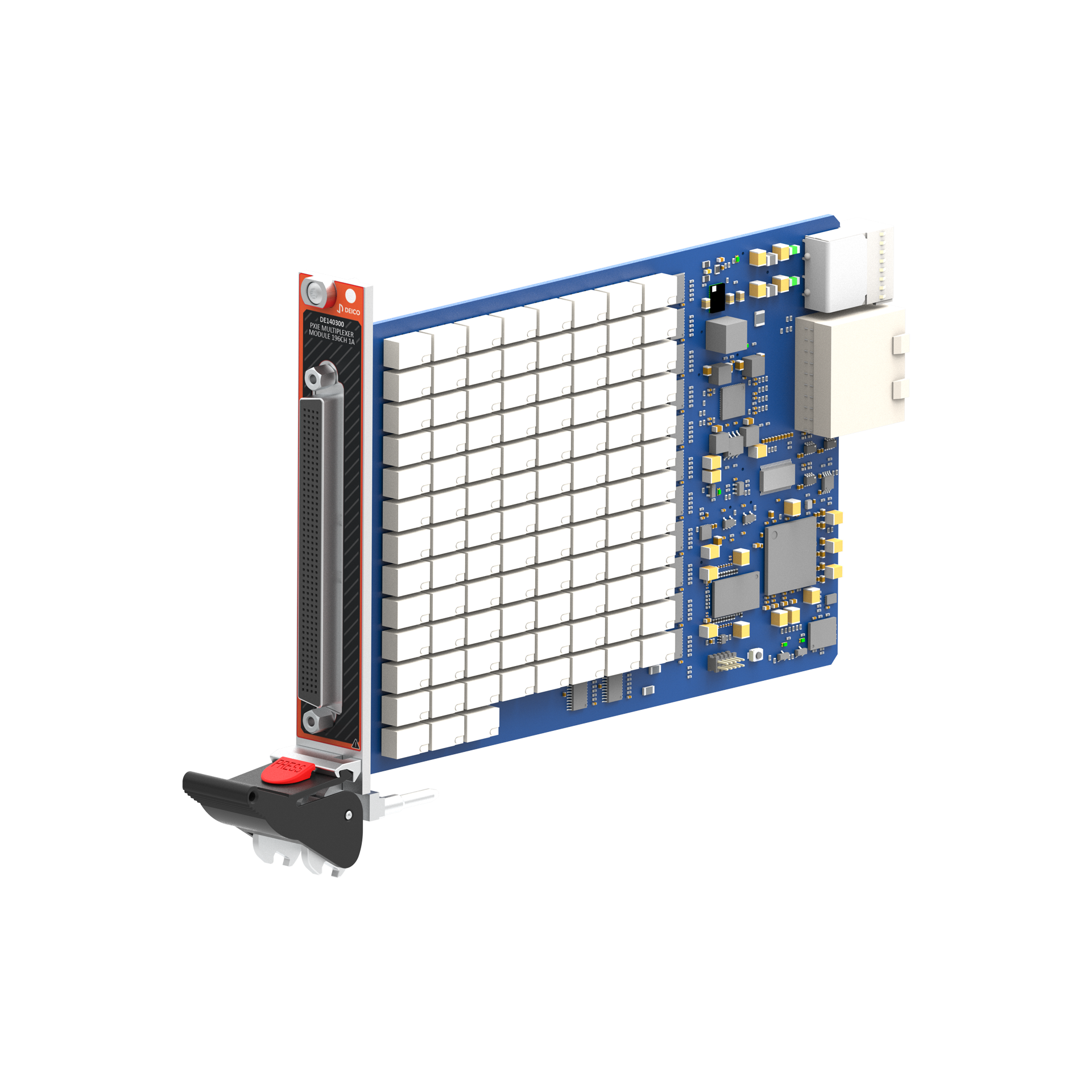

PXIe Multiplexer Module 196 CH 1 A

Product Code: DE140300

Available on backorder

Overview

DE140300 PXIe Multiplexer Module 196 CH 1 A is a multiplexer module designed for high-density switching applications. It features 196×1 or 98×2 configurations with electromechanical relays, providing flexible switching capabilities. Each relay supports switching voltages of up to 220 V DC or 250 V AC and can handle power ratings of up to 60 W (DC) / 62.5 VA (AC). The module has a maximum current capacity of 1 A per channel. A PXIe chassis is required for operation.

Key Features

  • 196 x 1 multiplexer configuration
  • 98 x 2 multiplexer configuration
  • Up to 220 V DC / 250 V AC
  • Up to 60 W / 62.5 VA
  • 1 A rated current
  • Hot or cold switching
  • Maximum 500 mΩ DC path resistance
  • Maximum 5 ms relay operate time
