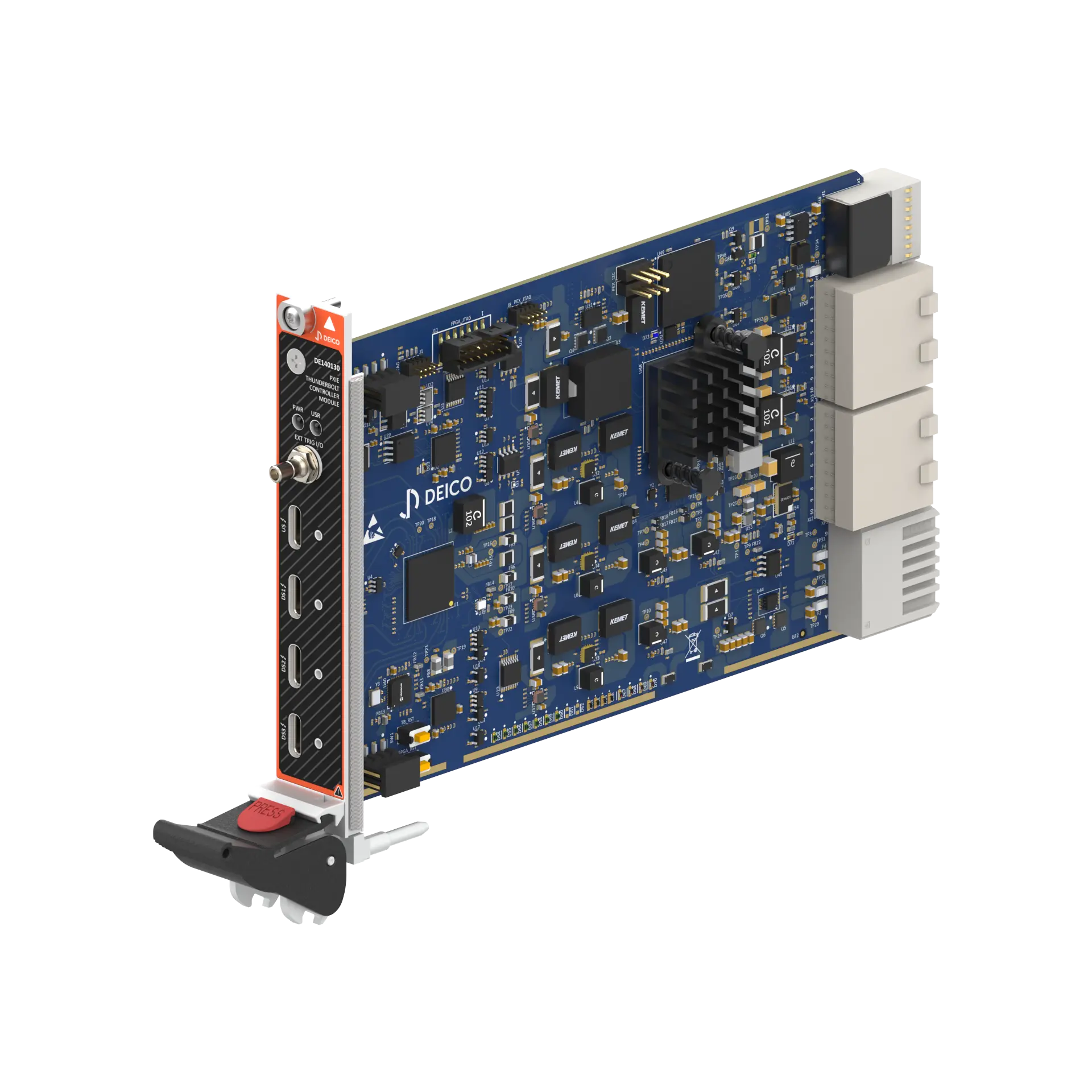

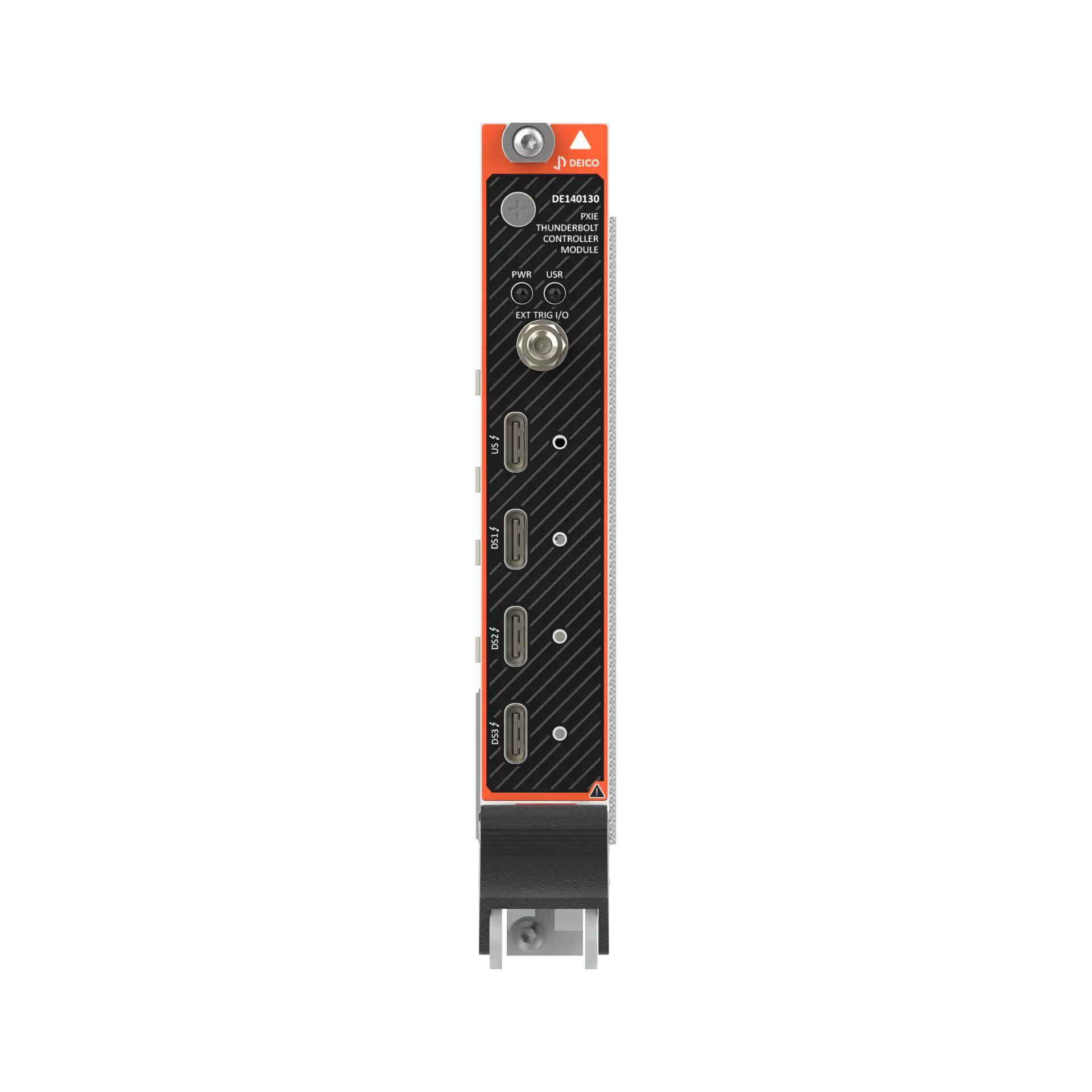

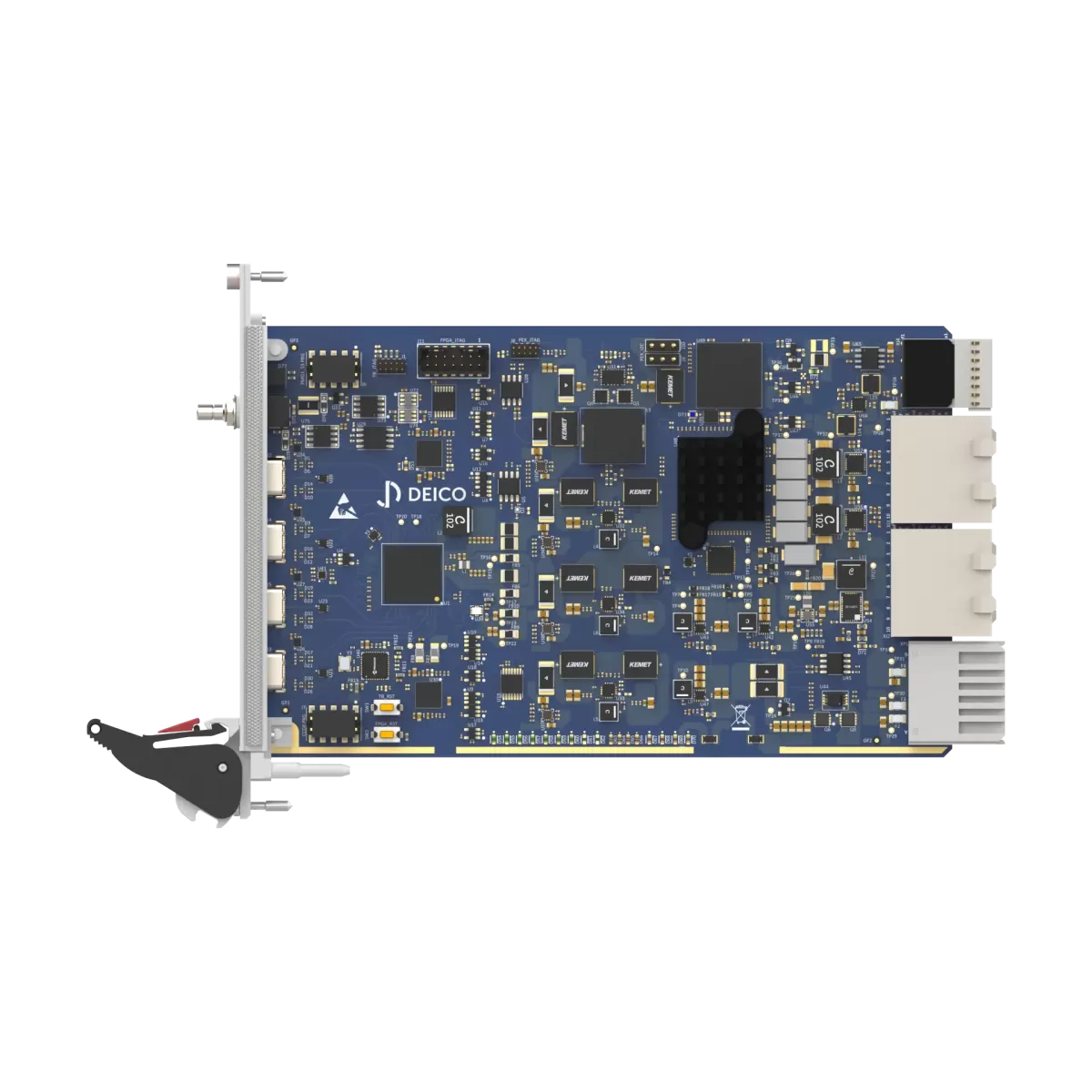

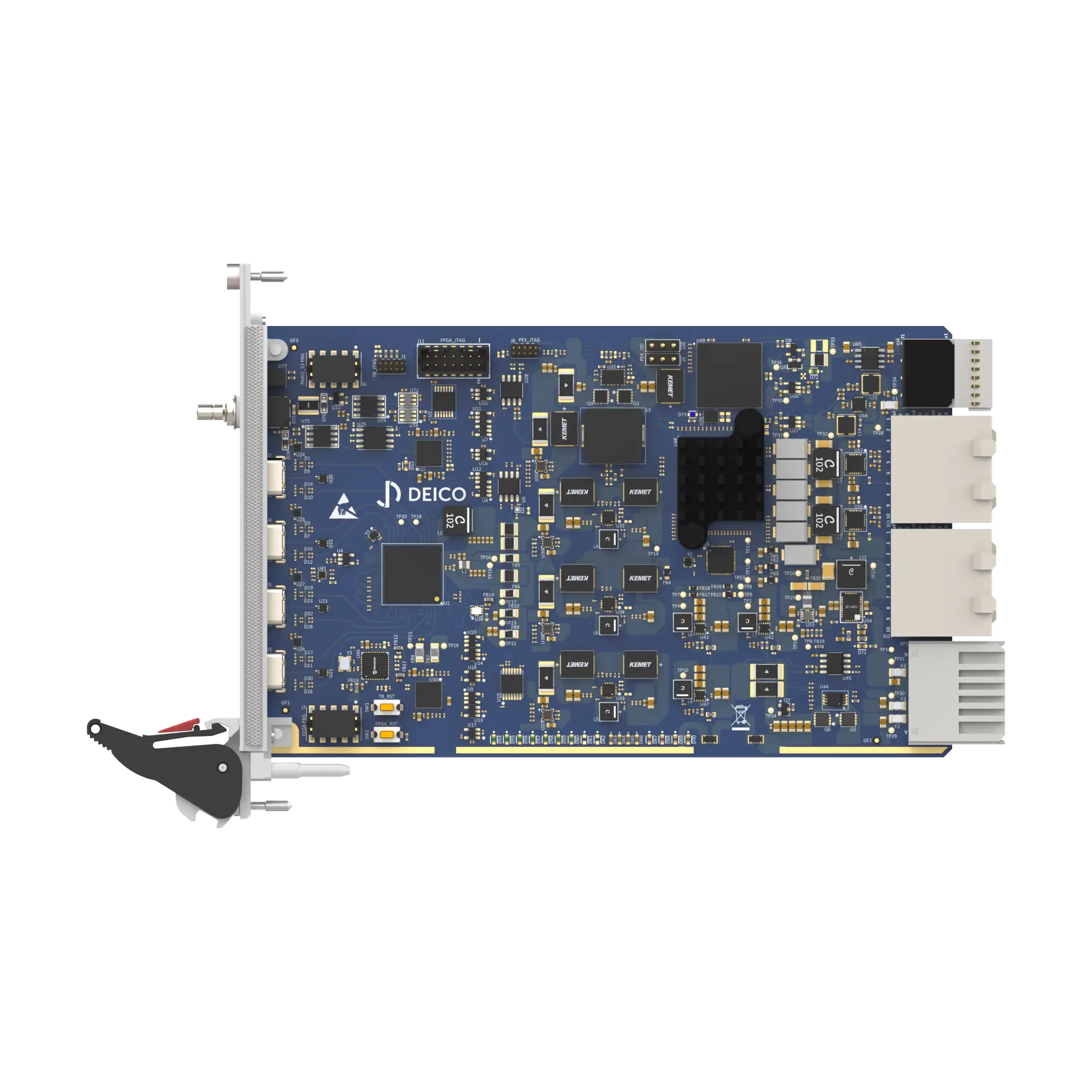

DE140130 PXIe Thunderbolt Controller Module is a single slot PXI Express remote controller. This device controls all peripheral modules and chassis in 4-link configuration. It has 1 upstream thunderbolt port, 3 downstream thunderbolt port, 1 external trigger input/output and 2 user LEDs.

Key Features

• 1 Thunderbolt™ 5, 80 Gb/s upstream port
• 3 Thunderbolt™ 5, 80 Gb/s downstream port
• 1 external trigger input/output
• 2 user controlled LEDs
• 4-link PCIe Gen3 x4 connection
• Maximum controller PCIe bandwidth: 4 GB/s
• Supported cable: copper
• Supports daisy chaining: yes
• Communication level: Thunderbolt 5

DE140130 is compatible with IEC 60068-2-1 / IEC 60068-2-2 / IEC 60068-2-78 / IEC 60068-2-27 / IEC 60068-2-64 / EN 61326 (IEC 61326) / EN 55011 (CISPR 11) / AS / NZS CISPR 11 / FCC 47 CFR Part 15B / ICES-001 standards.

Typical Applications

• LAB usage
• Modular test systems
• Automated test equipment
• PXIe based test systems
