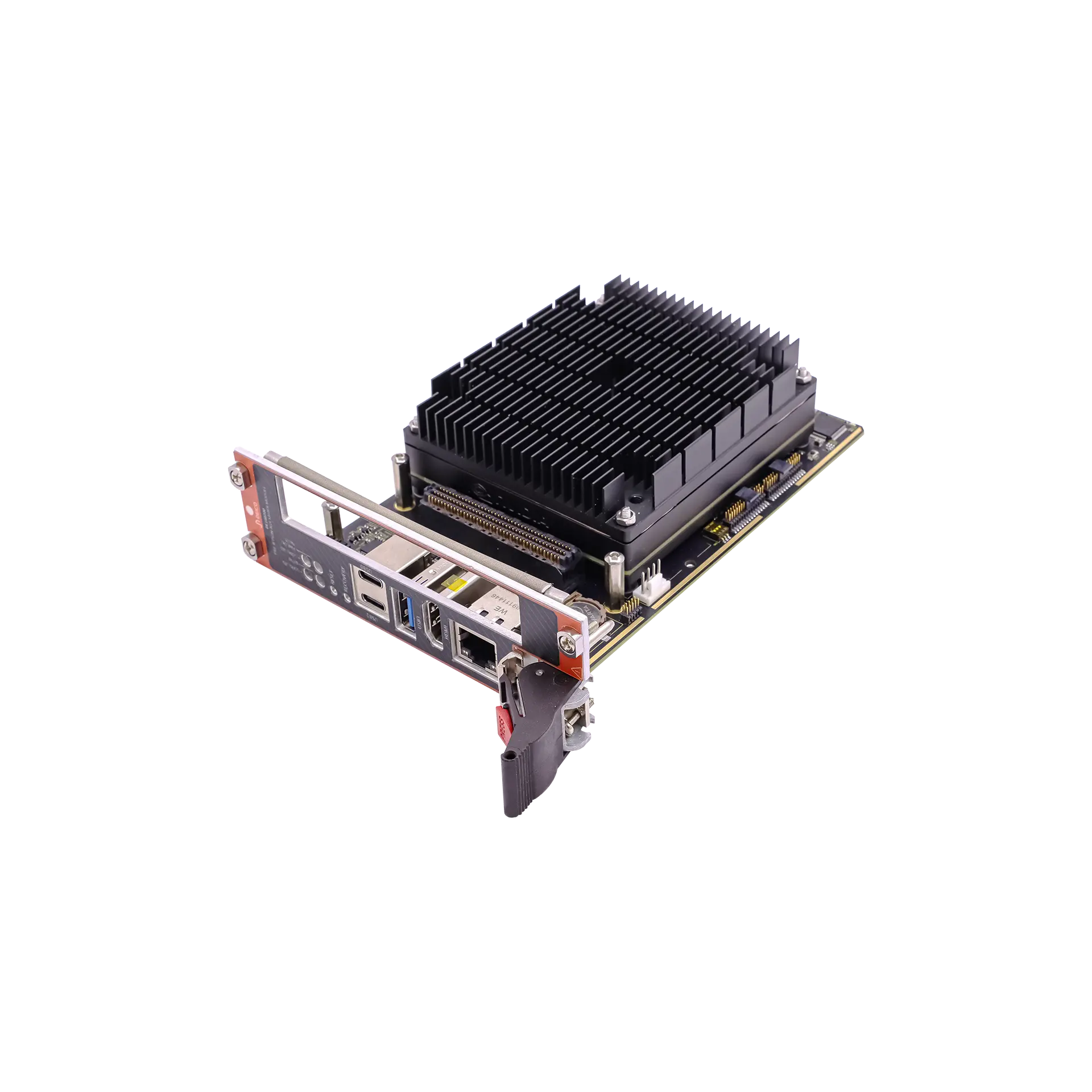

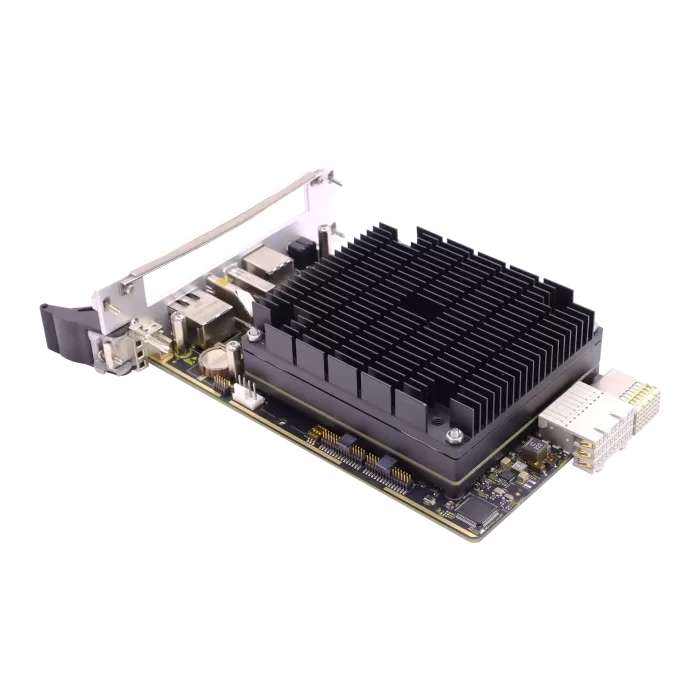

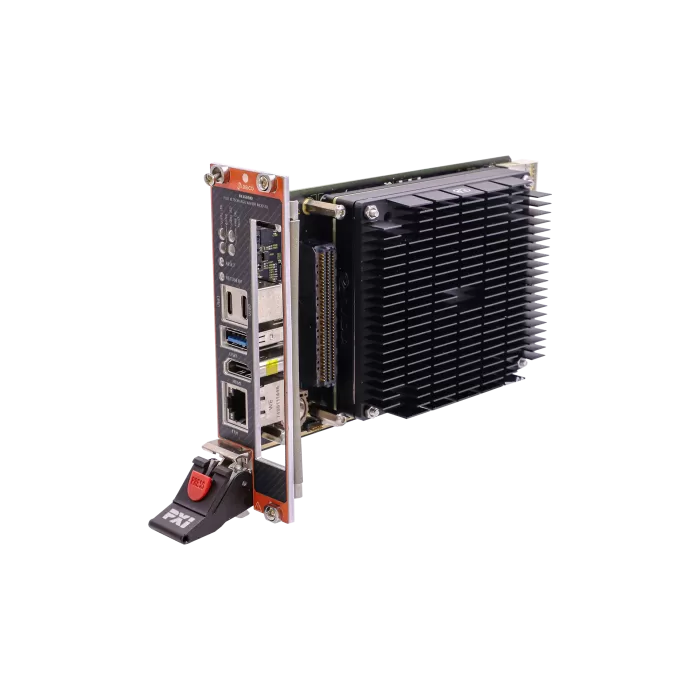

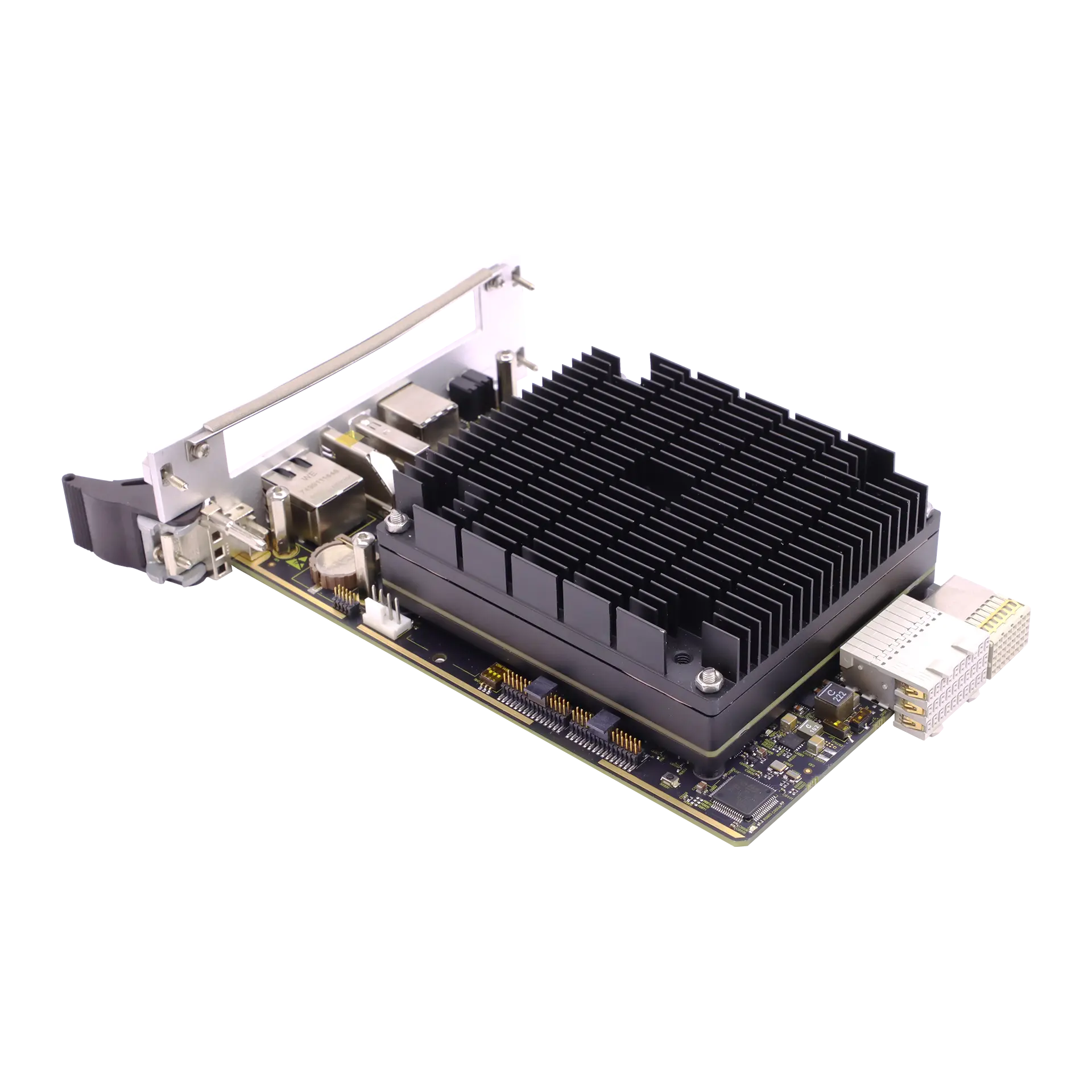

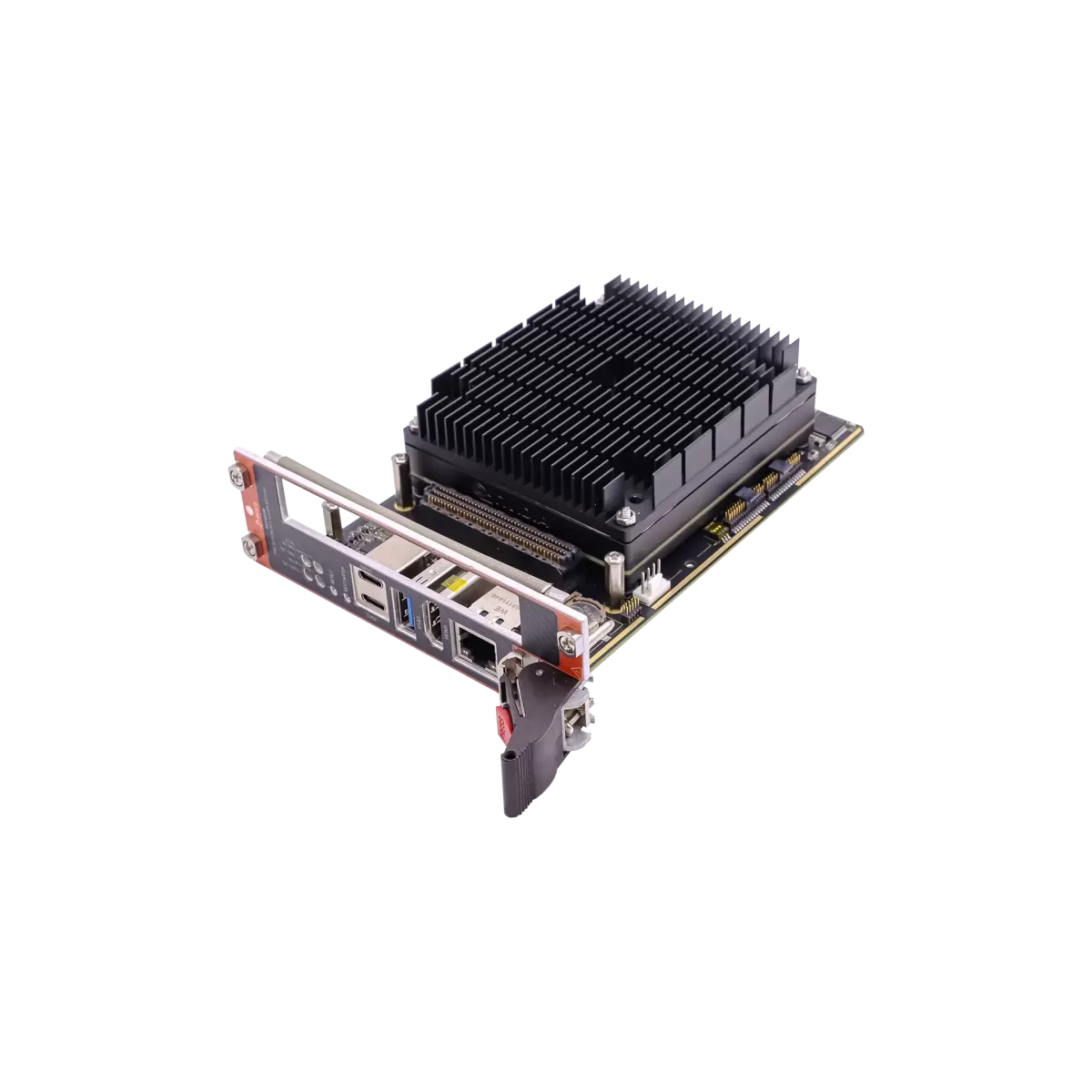

PXIe Jetson AGX Xavier Module Overview

The PXIe Jetson AGX Xavier Module delivers high-performance edge AI computing for demanding next-generation applications. It integrates NVIDIA’s Jetson AGX Xavier System-on-Module (SoM) into the PXIe form factor. This combination provides real-time processing for workloads such as computer vision, deep learning, and sensor data analysis.

High-Performance Hardware

The NVIDIA Jetson AGX Xavier SoM includes a powerful GPU, dedicated AI processors, and an octa-core ARM CPU. These components enable the execution of complex AI models directly at the edge. As a result, systems can make real-time decisions with minimal latency, reducing dependence on cloud infrastructure.

PXIe Form Factor Benefits

The PXIe design allows easy integration into modular systems used in test and measurement environments. This architecture supports scalability and provides engineers with a standardized platform for edge AI development.

Add-on Board Connector for Expansion

The module features an Add-on Board Connector for integrating additional hardware. Engineers can add interfaces such as GMSL2 and 3G-SDI through custom Add-on Boards. Signals for these high-bandwidth interfaces route directly from the Jetson platform, ensuring fast and reliable data transfer to external sensors and devices.

Flexible and Scalable Design

This modular approach lets users expand system capabilities without a full redesign. For example, adding GMSL2 or 3G-SDI interfaces enables handling of high-bandwidth sensor data and video streams. This makes the module suitable for applications in autonomous vehicles, industrial IoT, surveillance, and real-time video processing.

Key Features

• NVIDIA Jetson AGX Xavier SoM with GPU, AI accelerators, and octa-core ARM CPU
• PXIe form factor for modular integration and scalability
• Add-on Board Connector for GMSL2 and 3G-SDI interfaces
• Edge AI optimization for reduced latency and local processing
• Customizable platform for various industry applications
