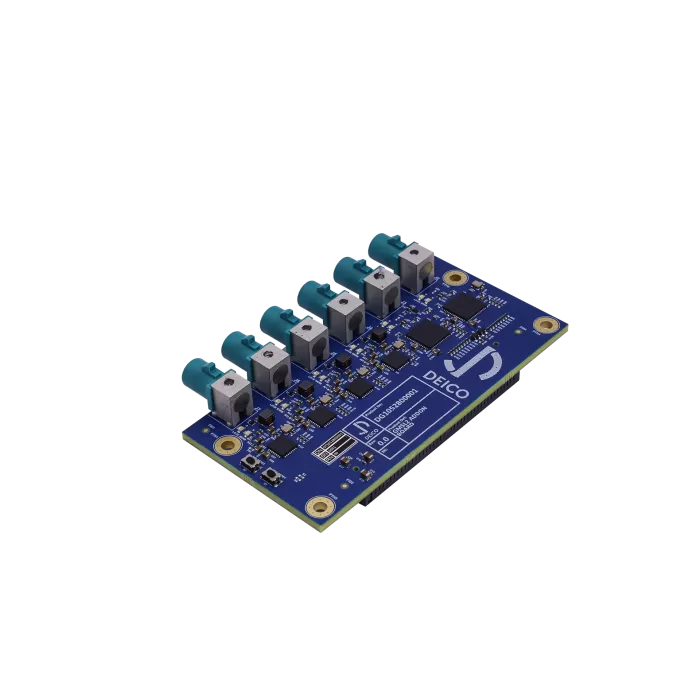

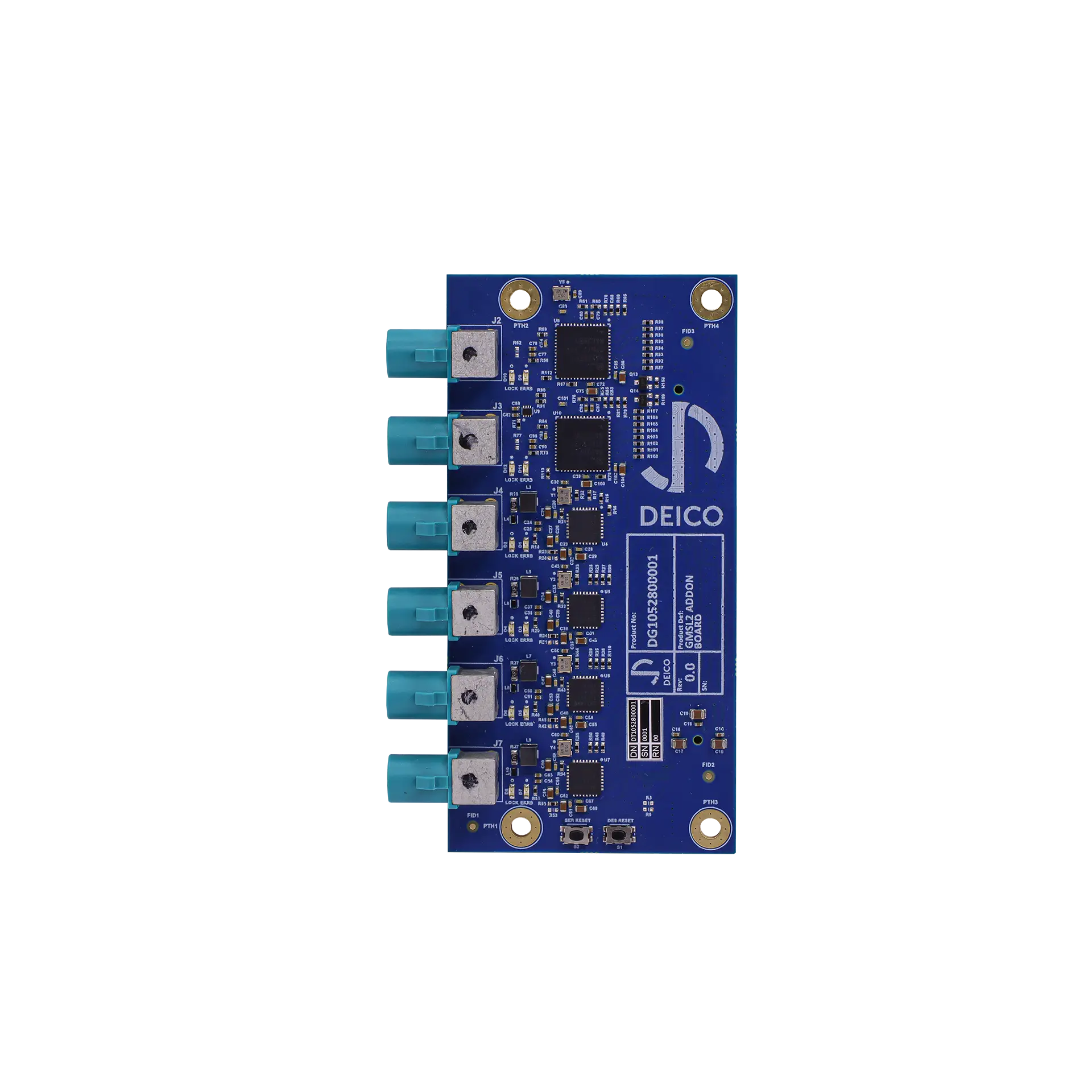

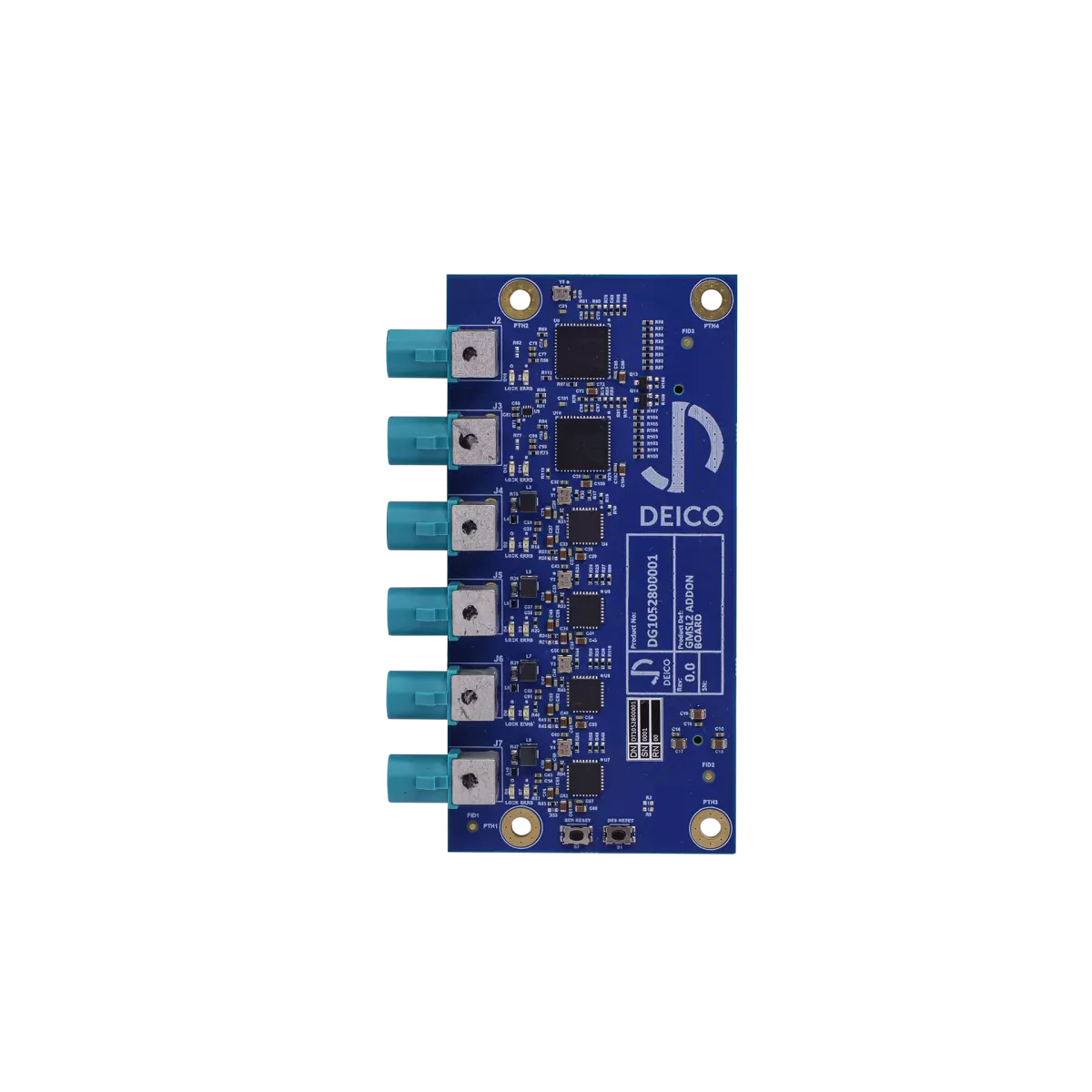

DE160300 GMSL2 Module Jetson Xavier is an add-on board for the PXIe Jetson AGX Xavier Module that converts HDMI and CSI-2 signals into GMSL2 outputs. It features two video output channels for HDMI operation, designed for use with GMSL2-compatible displays. Additionally, it includes four video input channels for CSI-2 operation, which support camera modules with GMSL2 outputs. Figure below illustrates the overall block diagram.

1.1. Key Features

• Two video output channels
  • Supports HDMI v1.4b/v2.0a input signals
  • 3 Gbps or 6 Gbps forward-link rates GMSL2 output
• Four video input channels
  • 3 Gbps GMSL2 input which can support up to 8 MP imagers
  • High-speed MIPI output (MIPI D-PHY v1.2)
  • Supports Power over Coax (PoC)
  • Compatible with variety of camera modules
