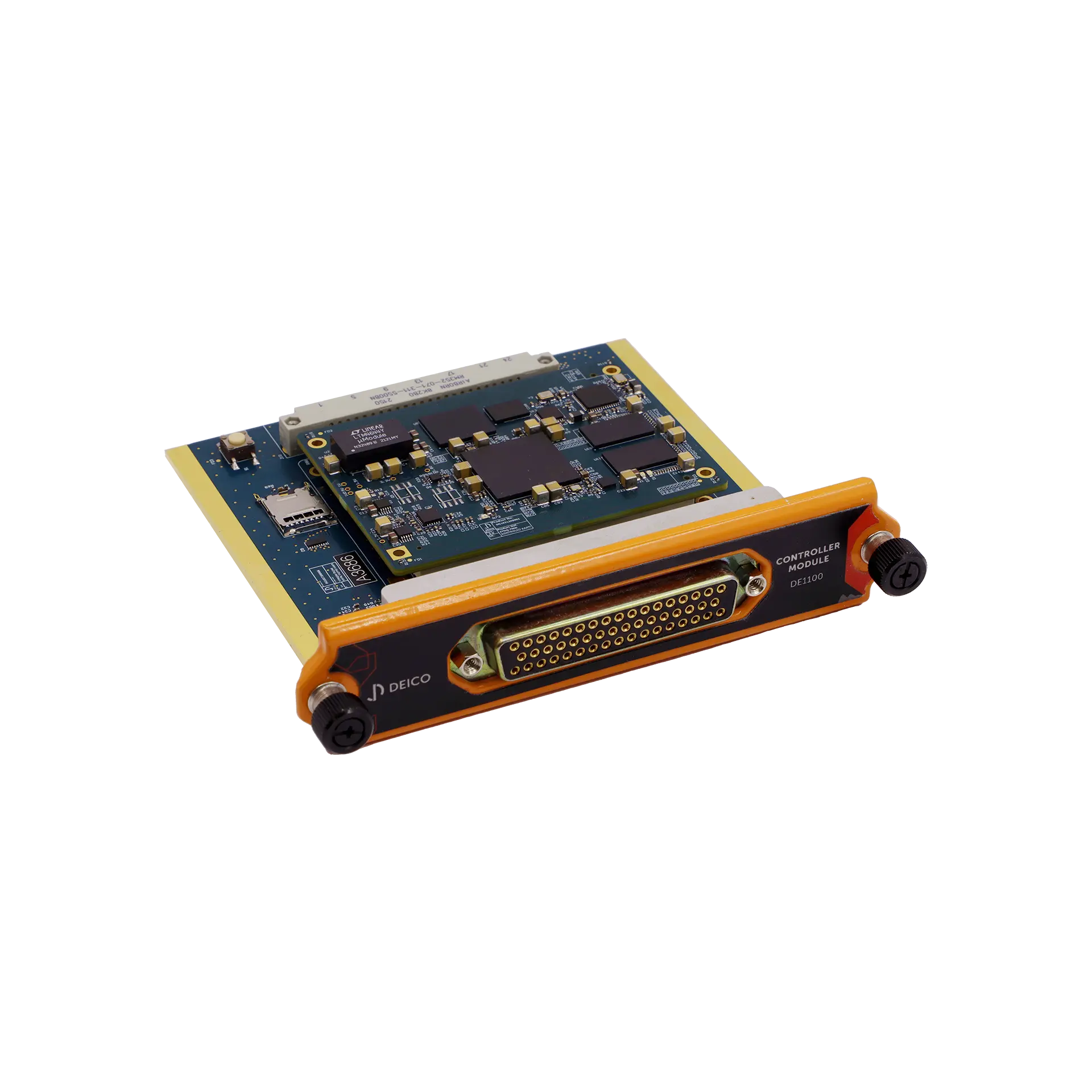

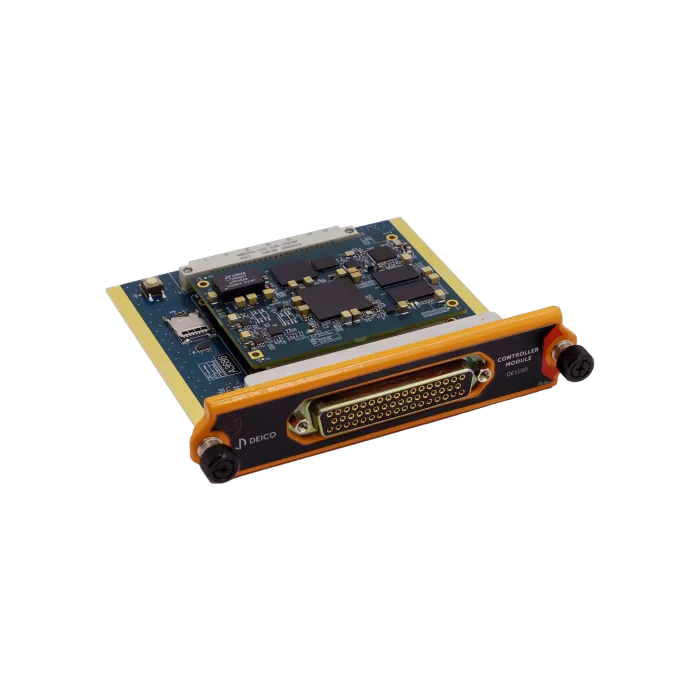

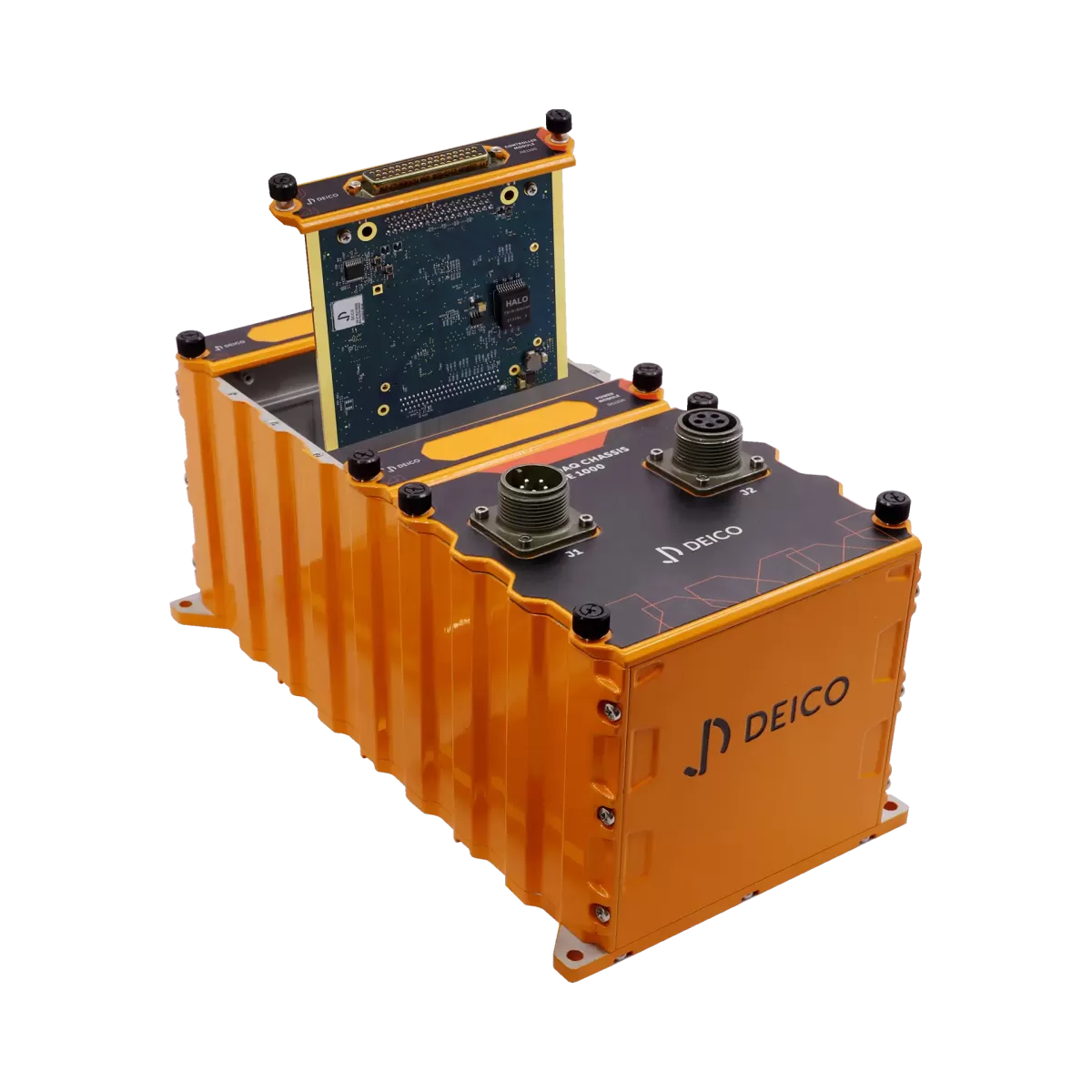

The DE1100 Rugged DAQ System Controller Module is built to control data acquisition chassis and connected modules with reliability in harsh environments. Powered by a Zynq processor, it offers fast processing for real-time control tasks. It supports five communication interfaces for versatile connectivity:

• RS-232/422/485 – 3 channels for industrial serial communication
• Ethernet – 1 channel for high-speed network access
• USB 2.0 – 1 channel for peripheral integration

This combination of interfaces enables integration into a wide range of data acquisition systems. As a result, engineers can streamline connectivity between modules, sensors, and host systems without additional hardware.

Key features

• 3-channel independently configurable RS-232/422/485 interfaces
• Up to 10 Mbps data rate for RS-422/485
• Up to 1 Mbps data rate for RS-232
• Programmable via JTAG and modular program blocks
• 1 Gbps Ethernet interface
• Simultaneous control of up to 8 modules

DE1100 Rugged DAQ System Controller Module Zynq is compliant with MIL-STD-461, MIL-STD-704E, MIL-STD-810G Change 1, and RTCA DO-160 standards.

Areas of application

• Data acquisition module control
• Signal processing
• Real-time signal monitoring
